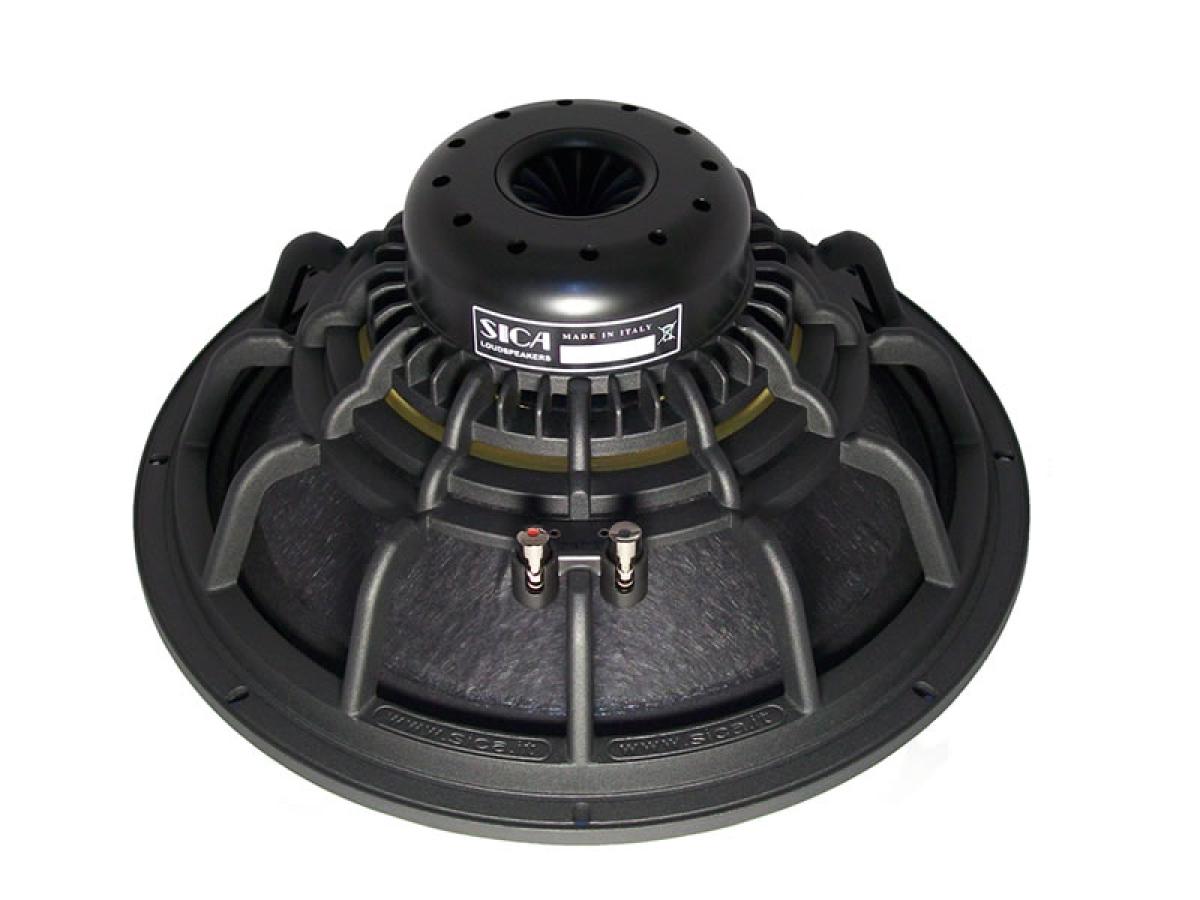

Sica 15" K4 Professional Woofer (Z008339), 15K4PL
- Messmuster -
Nominal Overall Diameter ................. 388 mm
Nominal Impedance........................... 8 Ω
Nominal Voice Coil Diameter .............. 100 mm
Musical Power ................................. 1400 W
Magnet Weight ............................... 715 g
Rated Power* .................................. 700 W
Sensitivity @ 1 W, 1 m ....................... 99.5 dB
Weight ......................................... 5.00 Kg
THIELE-SMALL PARAMETERS
Voice Coil DC Resistance ........... RE 5.13 Ω
Resonance Frequency ............... fs 47.8 Hz
Mechanical Q Factor................. QMS 10.74
Electrical Q Factor................... QES 0.30
Total Q Factor........................ QTS 0.29
Mechanical Moving Mass ............ MMS 116.9 g
Mechanical Compliance............. CMS 90 μm/N
Force Factor .......................... B×l 24.42 Wb/m
Equivalent Acoustic Volume........ VAS 98.3 lt.
Maximum Linear Displacement .... XMAX +/-6.0 mm
Reference Efficiency ................ η0 3.41 %
Diaphragm Area ...................... SD 855.3 cm2
Losses Electrical Resistance........ RES 182.4 Ω
Voice Coil Inductance @ 1kHz ..... LE 0.64 mH
