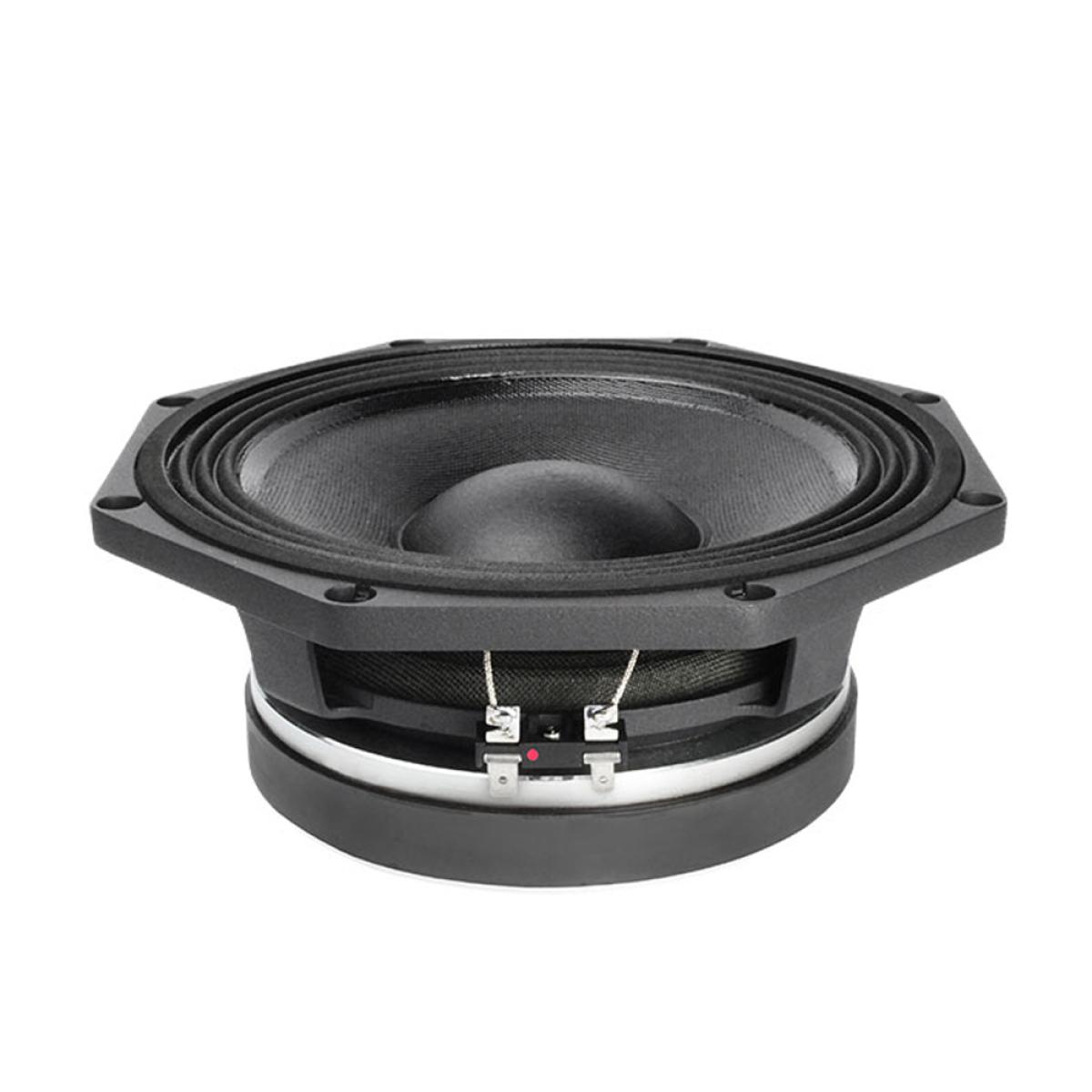

Faital Pro 8PR210 - 8" Lautsprecher 200 W 8 Ohm
Faital Pro 8PR210 Professional Serie - 8" Lautsprecher 200 W 8 Ohm
Datenblatt ...
- Nominal Diameter 8", 200 mm
- Overall Diameter 8.81/8.18", 223.7/207.9 mm
- Bolt Circle Diameter 8.27", 210 mm
- Baffle Cutout Diameter 7.20", 183 mm
- Depth 3.88", 98.5 mm
- Flange and Gasket Thickness 0.43", 10.8 mm
- Minimum Impedance 7 Ohm
- Nominal Impedance 8 Ohm
- Nominal Power Handling 200 W
- Maximum Power Handling 400 W
- Sensitivity (1W/1m) 95 dB
- Frequency Range 70 - 5000 Hz
- Voice Coil Diameter 2", 52 mm
- Winding Material Aluminium
- Former Material Glass Fiber
- Winding Depth 0.65", 16.5 mm
- Magnetic Gap Depth 0.31", 8 mm
- Flux Density 1.15 T
- Resonant Frequency (fs) 65 Hz
- DC Resistance (Re) 5.7 Ohm
- BL Product (BL) 13.5 N/A
- Diaphragm Mass inc. Airload (Mms) 25,3 grams
- Mechanical Compliance of Suspension (Cms) 0.24 mm/N
- Rms 3.38 Kg/s
- Electromagnetic Q (Qes) 0.32
- Mechanical Q (Qms) 3.1
- Total Q (Qts) 0.29
- Compliance Equivalent Volume (Vas) 0.46 ft³, 12.9 dm³
- Surface Area of Cone (Sd) 30.38"², 196 cm²
- Maximum Linear Excursion (Xmax)* 6.92 mm
- Xdamage** 15.7 mm
- Coil Inductance (Le) 0.46 mH
- Diaphragm mass (Mmd) 23.7 g
- Eta Zero 1.06 %
