BMS 4555 1.5" Treiber 8 Ohm
BMS 4555 - 1.5" Treiber 8 Ohm
Mounting information:
Datenblatt
- Throat diameter 1,5" (38 mm)
- Nominal impedance 8 Ohm
- Power capacity (AES) 80 W
- Peak power 450 W

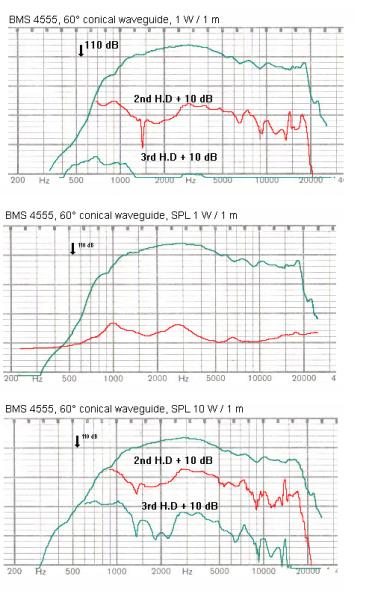

- Sensitivity in:
- CD Horn 90°x75°, 1W / 1m 113 dB
- Plane wave tube, 1mW 118 dB
- Maximal SPL (cont.) 132 dB aha_at 80 W
- Frequency range 500 - 20.000 Hz
- Recommended crossover 1.000 Hz
- Voice coil diameter 1,75" (44,4 mm)
- Magnet material Ceramic
- Flux density 2,0 T
- Voice coil material Cooper Clad Aluminium
- Voice coil former Kapton
- Diaphragm material Polyester
Mounting information:
- Overall Diameter 123 mm
- Depth 52 mm
- Net weight 2,25 kg
- Four M6 holes, 90° on 101,6 mm, 4" diameter
