BMS 4552ND - 1 Zoll Hochtontreiber 8 Ohm - DEMO
BMS 4552ND - 1" Hochtontreiber - 8 Ohm - DEMO
sehr kleiner (nur 85 mm Durchmesser!) und leistungsstarker Neodym Treiber ab 1000 Hz
Demo / Meßmuster!
Mounting information
Datenblatt
sehr kleiner (nur 85 mm Durchmesser!) und leistungsstarker Neodym Treiber ab 1000 Hz
Demo / Meßmuster!
- Throat diameter 1" (25,4 mm)
- Nominal impedance 8 Ohm
- Power capacity (AES) 80 W
- Peak power 450 W

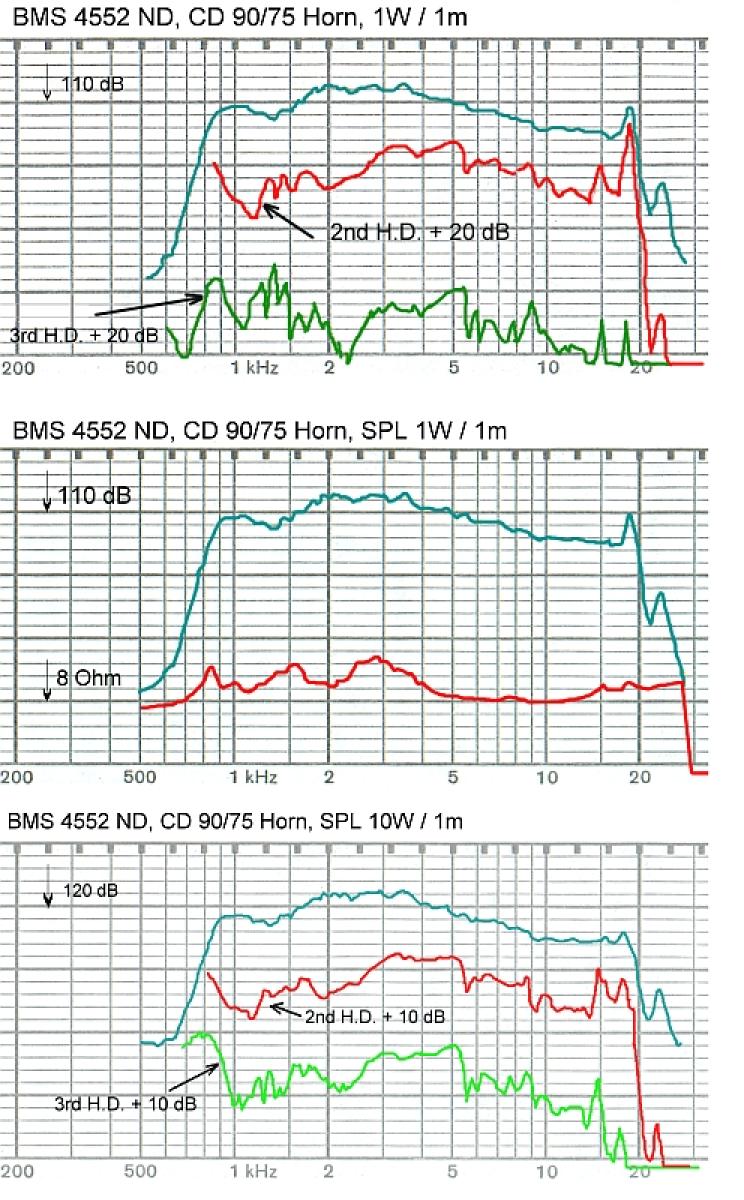

- Sensitivity in: CD Horn 90°x75°, 1W / 1m 113 dB
- Plane wave tube, 1mW 118 dB
- Maximal SPL (cont.) 132 dB 80 W
- Frequency range 500 - 20.000 Hz
- Recommended crossover 1.000 Hz
- Voice coil diameter 1,75" (44,4 mm)
- Magnet material Neodymium
- Flux density 2,2 T
- Voice coil material Cooper Clad Aluminium
- Voice coil former Kapton
- Diaphragm material Polyester
Mounting information
- Overall Diameter 85 mm (+/-0,1mm)
- Depth 36 mm
- Net weight 0,83 kg
- Two M6 holes, 180° on 76,2 mm diameter
