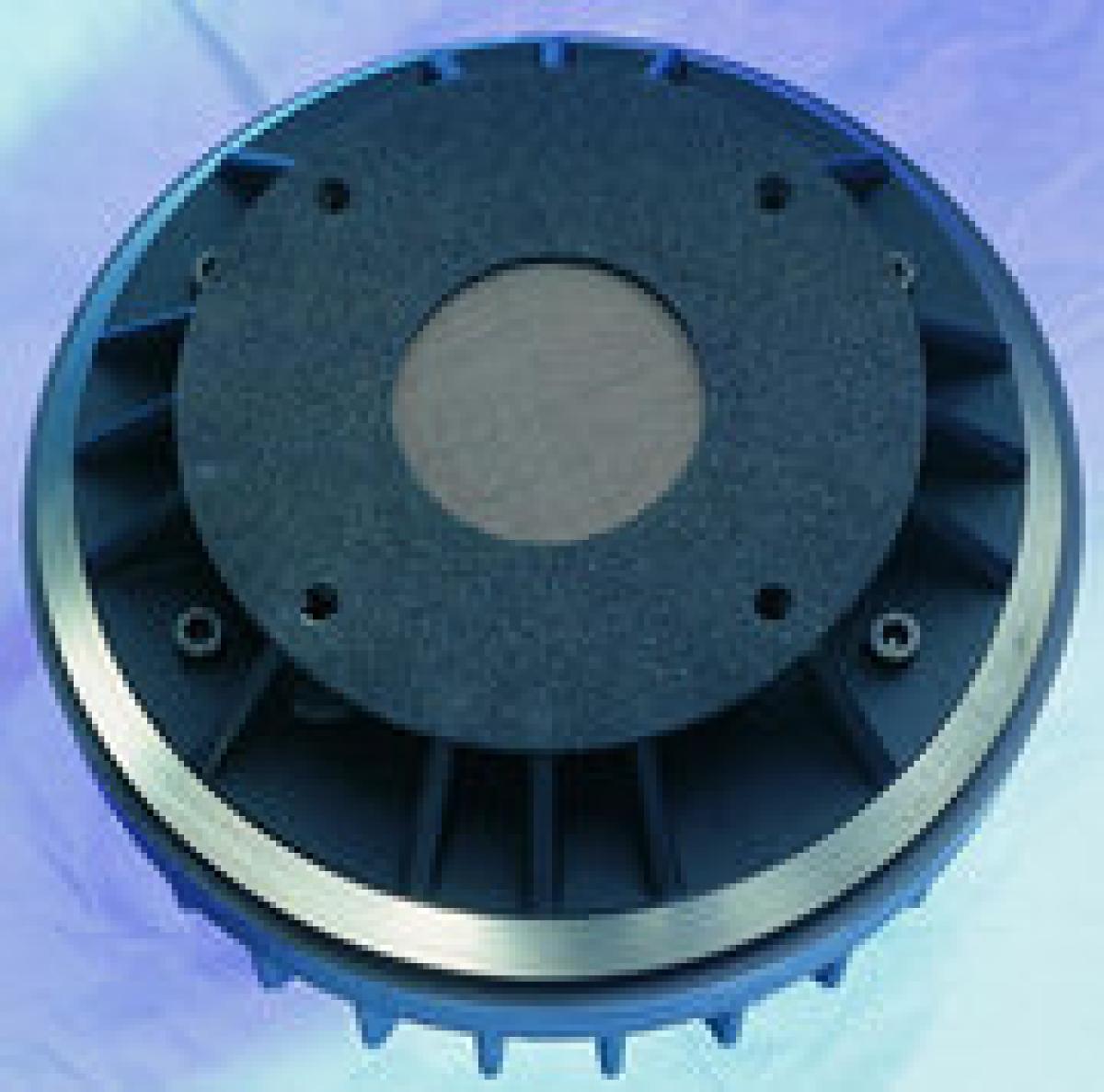

BMS 4590 - 2" Koaxial Treiber, 16ohm
BMS 4590 - 2" Koaxial Treiber, 16ohm
AUCH IN 8 Ohm ERHÄLTLICH
Mounting information
Overal diameter 180 mm (+3 mm)
Depth 129 mm
Net weight 9 kg
Four M6 holes, 90° on 101,6 mm.
Datenblatt
AUCH IN 8 Ohm ERHÄLTLICH
Mounting information
Overal diameter 180 mm (+3 mm)
Depth 129 mm
Net weight 9 kg
Four M6 holes, 90° on 101,6 mm.
- Throat diameter 50 mm (2")
- Nominal impedance 16 OhmPower capacity 150 W RMS above 400 Hz 1000 W peak above 500 Hz 1300 W peak above 600 Hz
- Frequency range 400-21.000 Hz
- Sensitivity (1W/1m) 114 dB
- Recommended crossover 400 Hz Middle frequency range 400-7.000 Hz
- High frequency range 6.000-21.000 Hz Middle/High crossover 6.500 Hz
- Distortion 2nd harmonic < 0,5 % (400-1.000 Hz) 1 % above 1.000 Hz)
- Distortion 3rd harmonic < 0,1 %
- Voice coil Mid-range 90 mm (3,5")
- Voice coil High-range 44.5 mm (1,75")
- Flux density Mid-range 2 T
- Flux density High-range 2,15 T
- Efficiency 30 % (400-5.000 Hz) Voice coil material Aluminium (2 layers inside and outside of the VC)
- Voice coil former Kapton
- Diaphragm material Polyester
