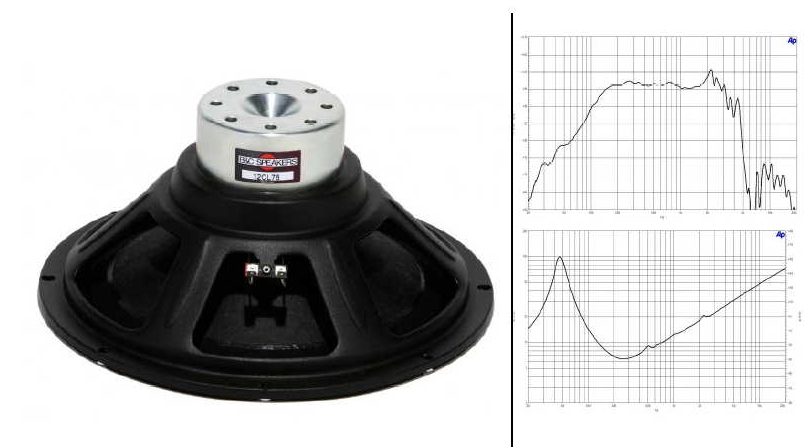

B&C 12CL76 - 12" Lautsprecher - 8 Ohm
B&C 12CL76 - 12" Neodym Lautsprecher - 8 Ohm
Specifications
Parameters
Mounting and Shipping info
Datenblatt ...
Specifications
- Nominal Diameter: 320 mm (12 in)
- Nominal Impedance: 8 ohm
- Minimum Impedance: 6.5 ohm
- Nominal Power Handling (AES): 350 W
- Continuous Power Handling: 700 W
- Sensitivity (1W/1m): 98.5 dB
- Frequency Range: 45 - 3000 Hz
- Voice Coil Diameter: 76 mm (3 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Magnet Material: Neodymium Inside Slug
- Winding Depth: 17 mm (0.67 in)
- Magnetic Gap Depth: 11 mm (0.43 in)
- Flux Density: 1.05 T
Parameters
- Fs: 48 Hz
- Re: 5.2 ohm
- Qes: 0.22
- Qms: 4.8
- Qts: 0.21
- Vas: 59 dm3 (2.10 ft3)
- Sd: 522 cm2 (80.90 in2)
- η0: 2.9 %
- Xmax: ± 6 mm
- Xvar: ± 8.5 mm
- Mms: 70 g
- Bl: 22.4 Txm
- Le: 1.5 mH
Mounting and Shipping info
- Overall Diameter: 311 mm (12.25 in)
- Bolt Circle Diameter: 296 mm (11.65 in)
- Baffle Cutout Diameter: 281 mm (11 in)
- Depth: 143 mm (5.6 in)
- Flange and Gasket Thickness: 9.5 mm (0.4 in)
- Net Weight: 3 kg (6.6 lb)
- Shipping Weight: 3.5 kg (7.7 lb)
- Shipping Box: 340x340x170 mm (13.4x13.4x6.7 in)
